K1_P_REVB

K1_P_REVB

K1_P_REVB

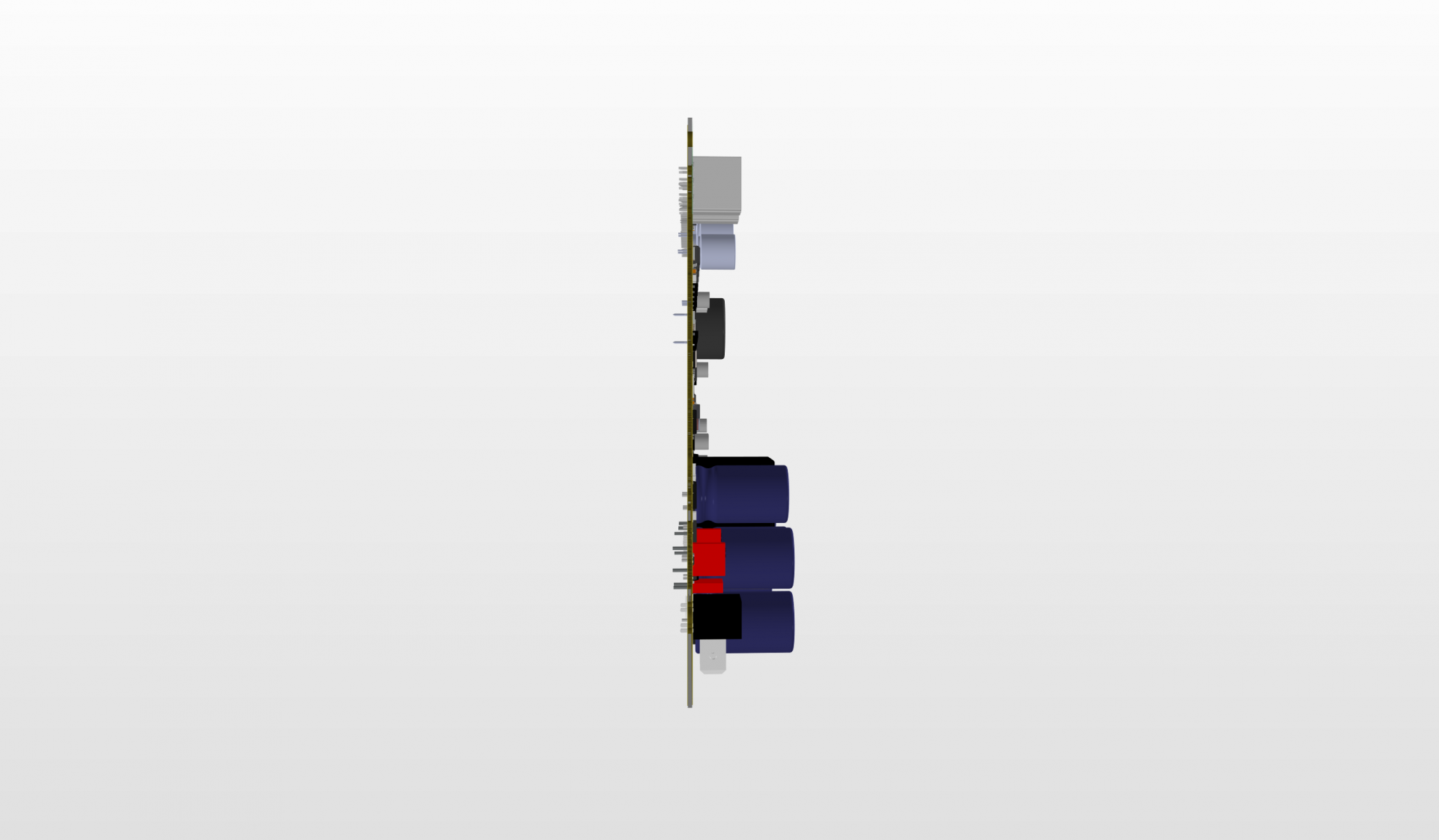

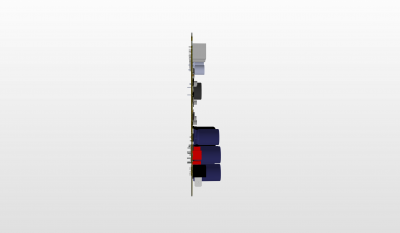

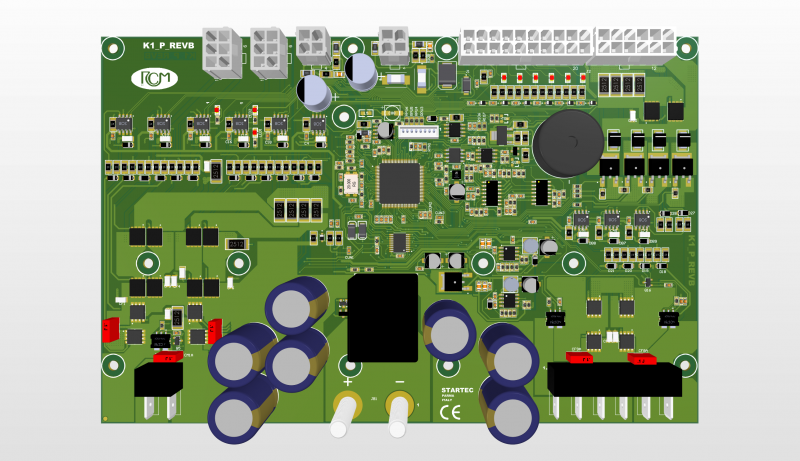

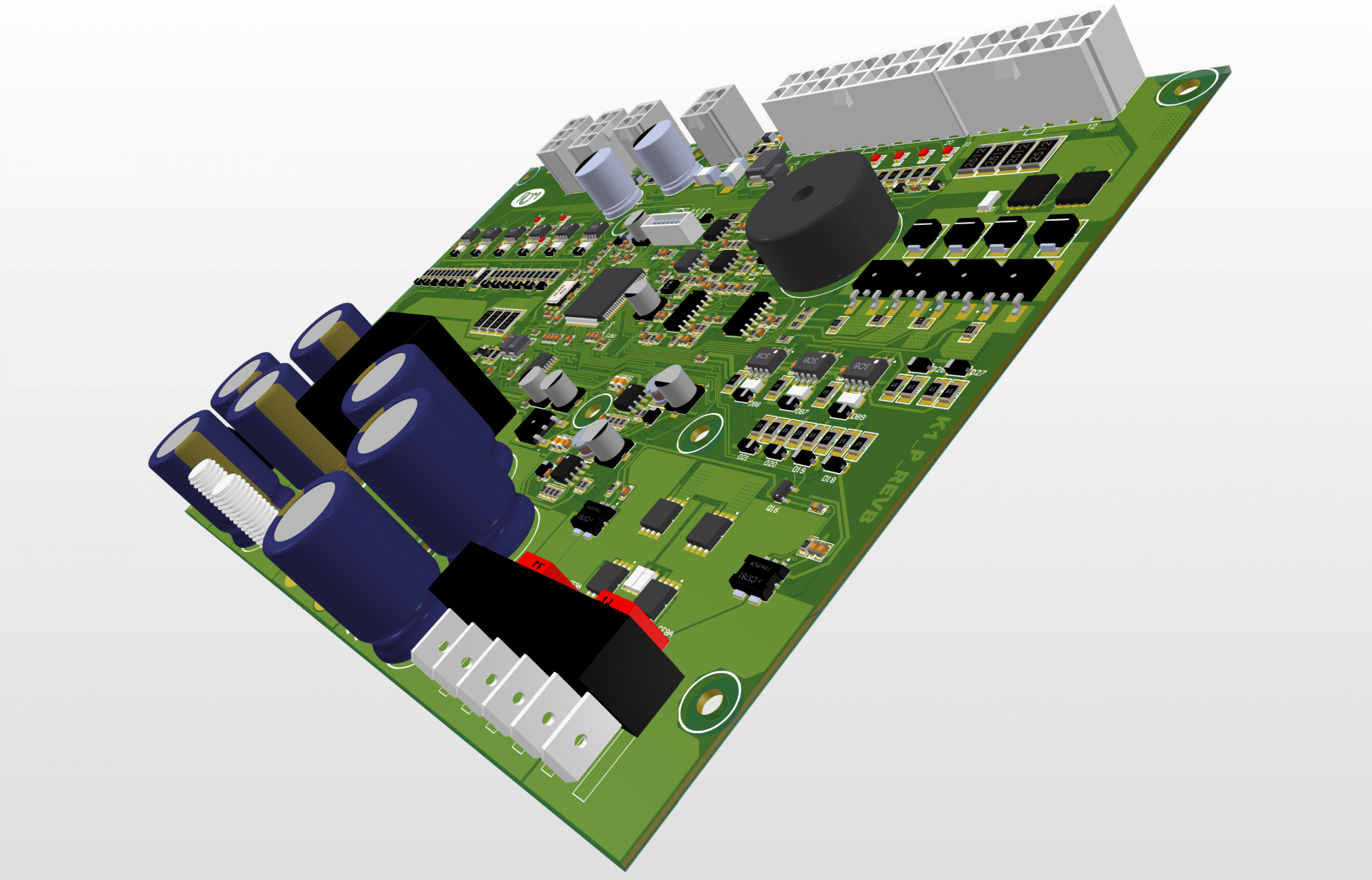

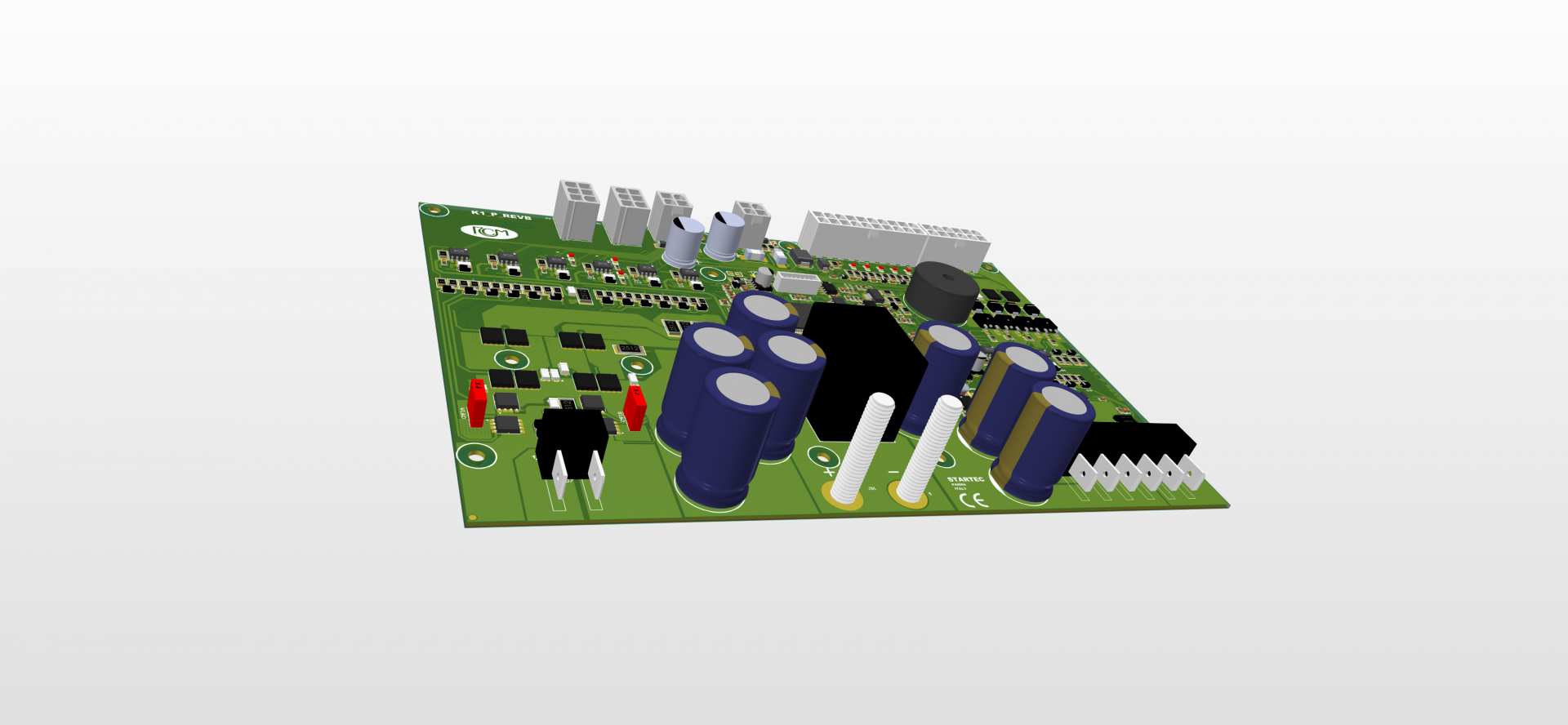

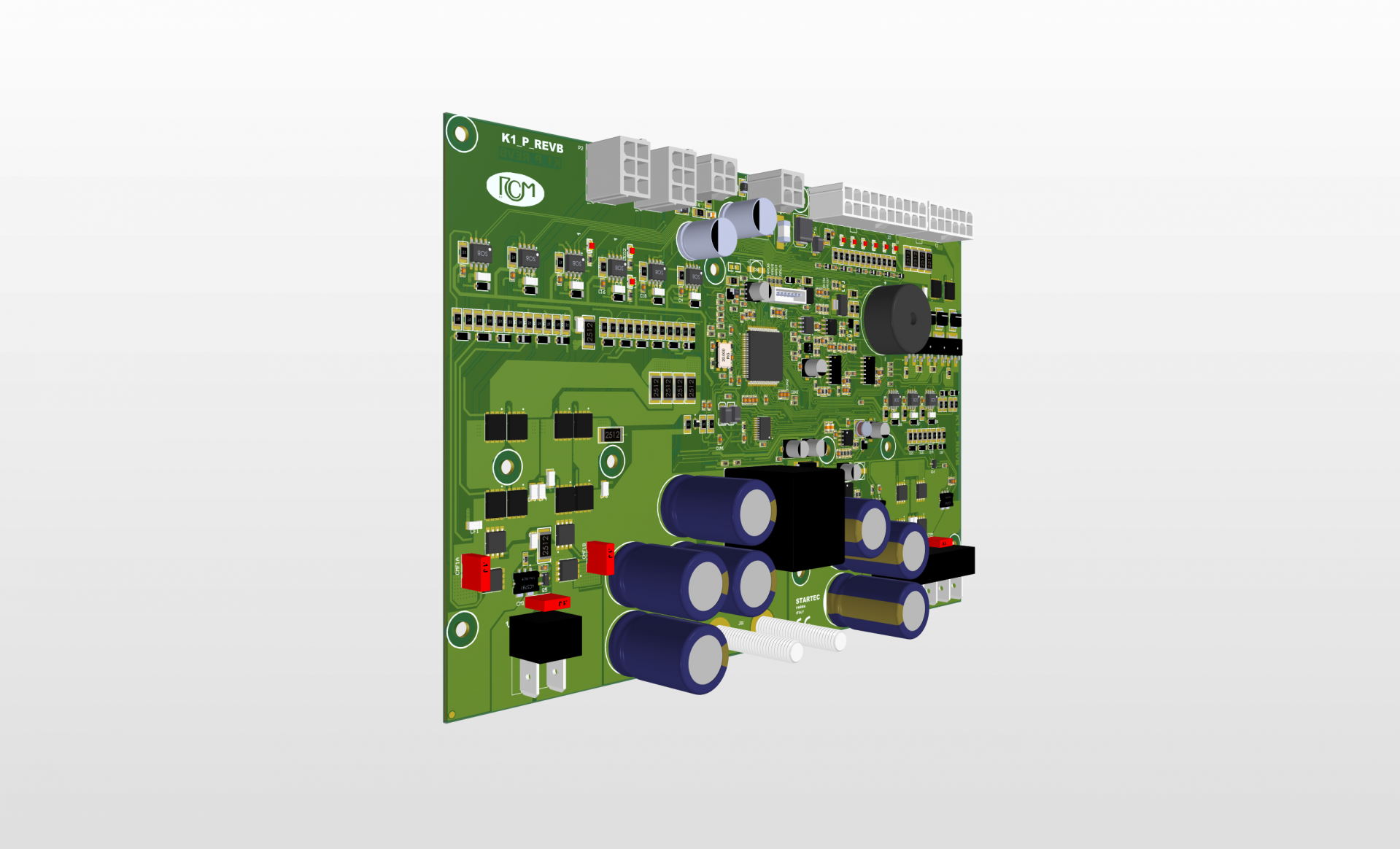

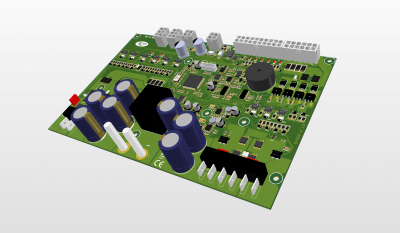

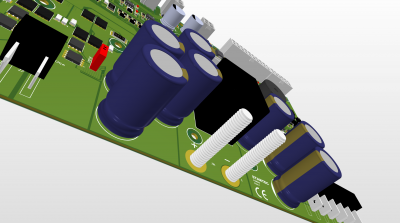

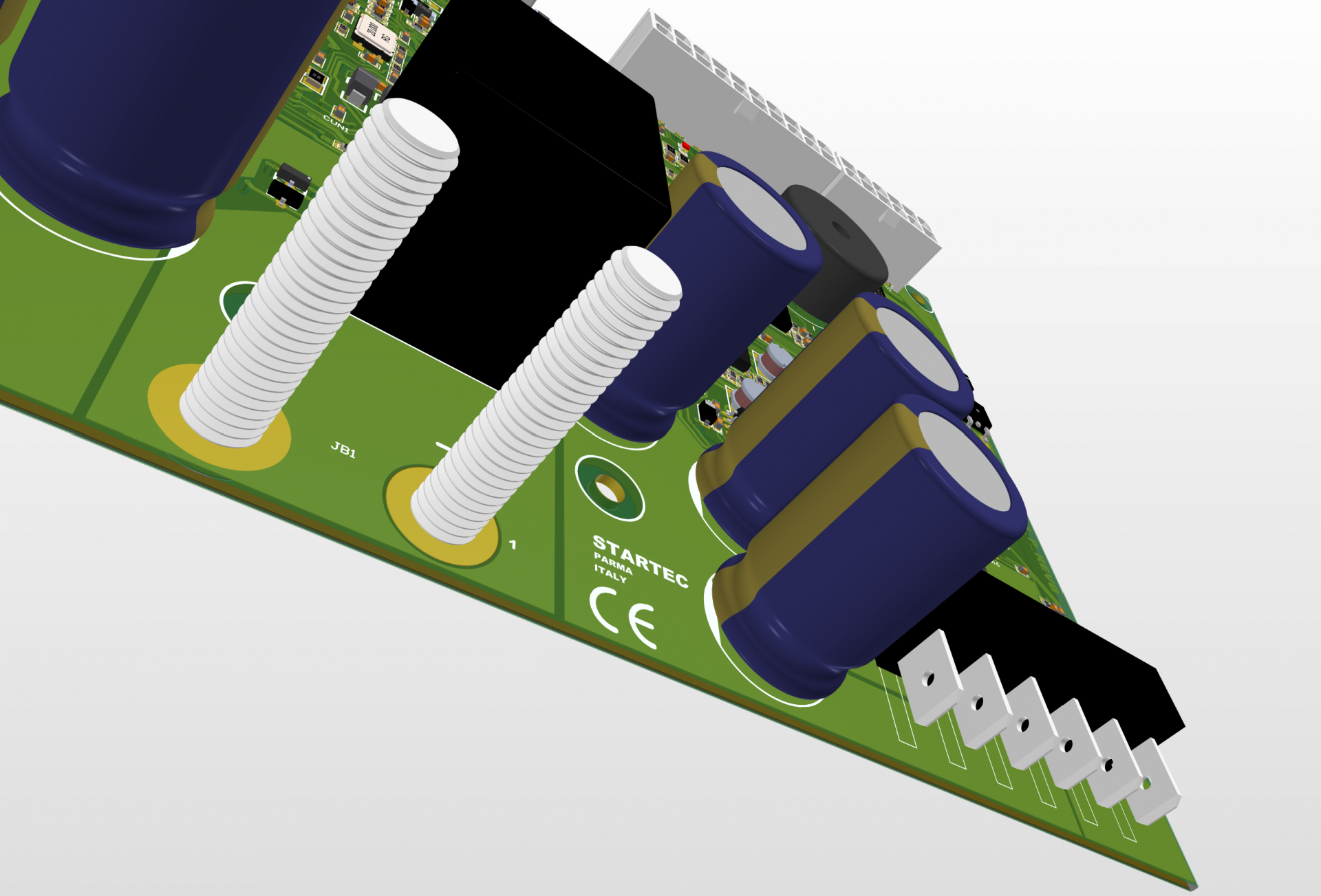

Power control board

Technical features
  • Power supply: 20-27V battery
  • Traction motor: 24V / 350W
  • Electric brake control output: 3A max.
  • Buzzer
  • Speed reference input power supply: 5V or 12V
  • Seat switch input: connect with +B
  • Moving switch input: to be connected with +B
  • Speed reduction switch input: to be connected with +B
  • Brush motor output: 24V / 500W
  • No-load motor output: 24V / 500W
  • Solenoid valve output: 3A max.
  • Detergent pump output: 3A max.
  • Water pump output: 5A nom. / 15A max.
  • Switch key input: logic power supply to be protected by fuse 3A
