ST SMART CONTROL

What you need

ST SMART CONTROL is a smartphone app and a WI-FI radio receiver that allows the smartphone to act as a remote control.

Simple

Smart Control is compatible with all traditional control units, does not require external stations and does not require modification of the existing receiving system.

Safer

Thanks to WPA2 encryption, Smart Control is safer than any remote control on the market.

Anywhere without problems

Smart Control works without internet access and therefore it always works, in every part of the world, and without exception.

Also from far

Smart Control works up to 100 meters away in a free area thanks to Wi-Fi technology: far beyond the reach of traditional remote controls or Bluetooth-based remote controls.

Two Independent Channels

With just one device you can get two different functions such as opening the driveway and the pedestrian.

Using the smartphone WI-FI, the app orders the appropriate radio receiver to execute the command. Once the app is launched, a virtual remote control is visible on the smartphone display. To activate the automation, just press the corresponding button, like a traditional remote control. The app will give a signal of its correct functioning by means of a virtual LED light signal.

It's easy to use and anyone can do it just need to be able to use a smartphone.

ST SMART CONTROL is a virtual remote control to operate doors, gates, gates, automatic garages.

ST SMART CONTROL allows you to use the same device to operate different gates or automations configured to them and allows you not to replace the receiving system / electronic control unit in case of loss or theft of the remote control, in fact in these cases just lock the smartphone.

ST SMART CONTROL means zero maintenance cost, it is environmentally friendly, no printed circuit boards, no battery to replace is compatible on any iPhone and Android Smartphone.

ST SMART CONTROL

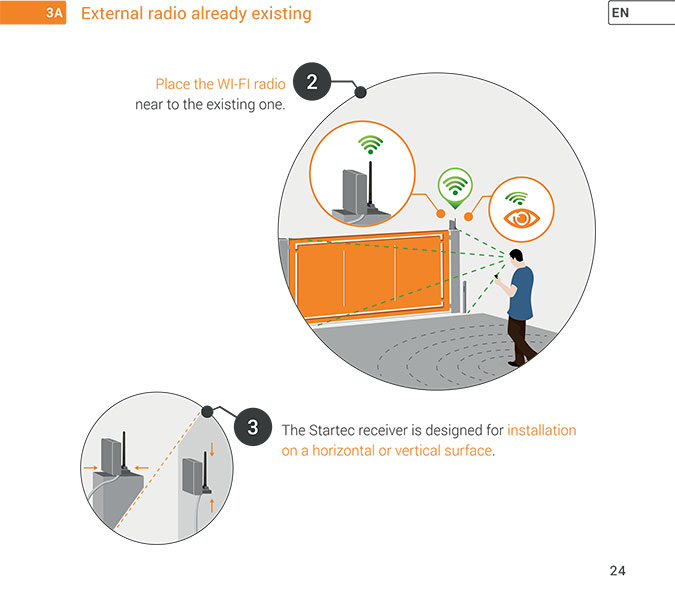

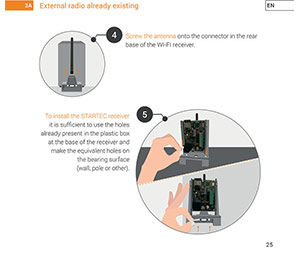

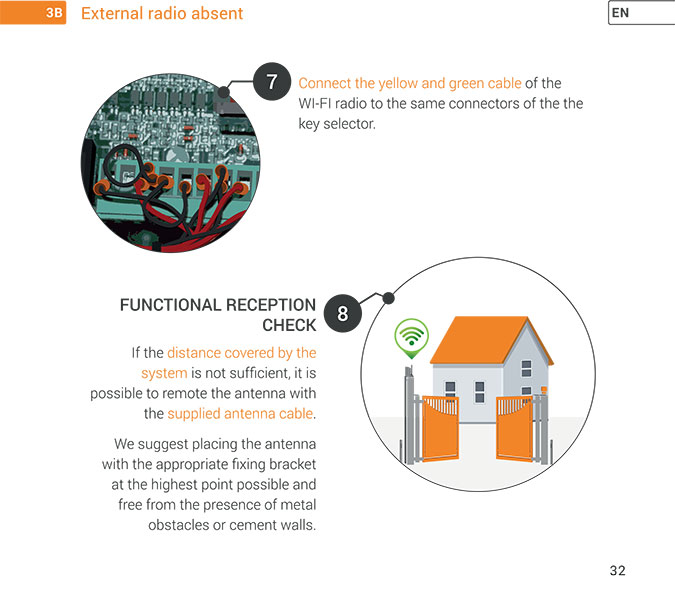

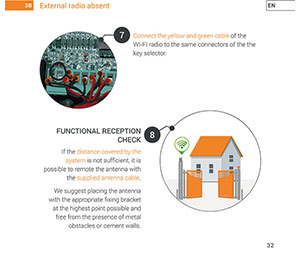

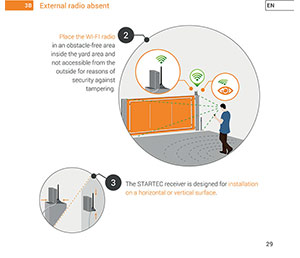

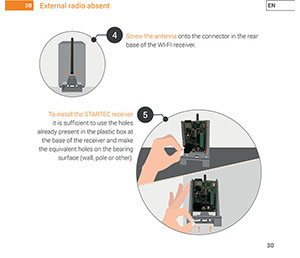

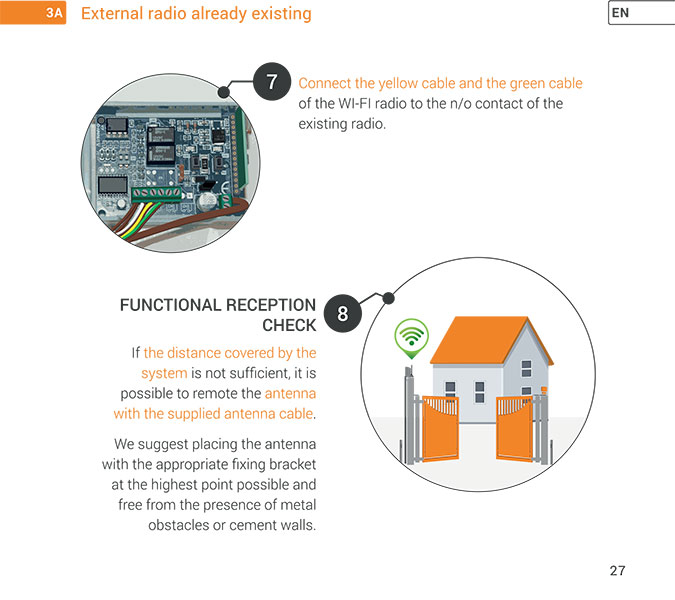

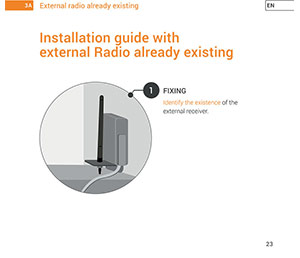

INSTALLATION

At the first use:
  • Install the WI-FI receiver (ask your electrician for advice);
  • Download the app from Google play (Android) or App Store (iOs);
  • Configure the type of automation;
  • Launch the app on your smartphone.

TECHNICAL FEATURES

  • Reception frequency
    2.4 GHz IEE 802.11 b / g / n
  • Antenna input impedance
    50 Ohms
  • TX power
    18.3 dBm @ 1Mbps DSSS
    13.7 dBm @ 54 Mbps OFDM
  • RX Sensitivity
    -96.0 dBm @ 1Mbps DSSS
    -74.5 dBm @ 54 Mbps OFDM
  • Safety
    WEP / WPA / WPA2 personal security
  • Supply
    12V / 24V ± 15% Ac / Dc
  • Current absorption
    Standby with RTC: 43 μA
    Sleep connedted (DTIM = 1): 15 mA
    RX traffic: 105 mA typical
    TX traffic: 243 mA typical @ 10 dBm
    Max current switchable from PhotoMos (resistive load)
    120 mA
  • Max command response delay
    4s
  • Operating temperature
    -20 ° C + 85 ° C
  • Dimensions
    Only PCB 67 x 50 x 21 mm
    with box 102 x 60 x 70 mm

PRICES

ST KIT SMART CONTROL ++ (PLUS PLUS)

199,00

(VAT included)

  • No. 2 activation codes
  • Antenna
  • Antenna extension cable
  • bracket
  • Screws
  • Precision screwdriver

ST CONTROL SMART CONTROL BASE

169,00

(VAT included)

  • n ° 1 activation code
  • Antenna
  • Antenna extension cable
  • bracket
  • Screws

ACTIVATION CODE only

19,90

(VAT included)

  • n ° 1 activation code
